Product Description
The Round Grate Magnet is designed for removing ferrous metal contamination from powders, granules, and free-flowing dry materials. It is commonly installed inside hoppers, chutes, bins, and processing lines where iron particles, tramp metal, and other magnetic contaminants need to be captured before they enter production equipment or finished products.

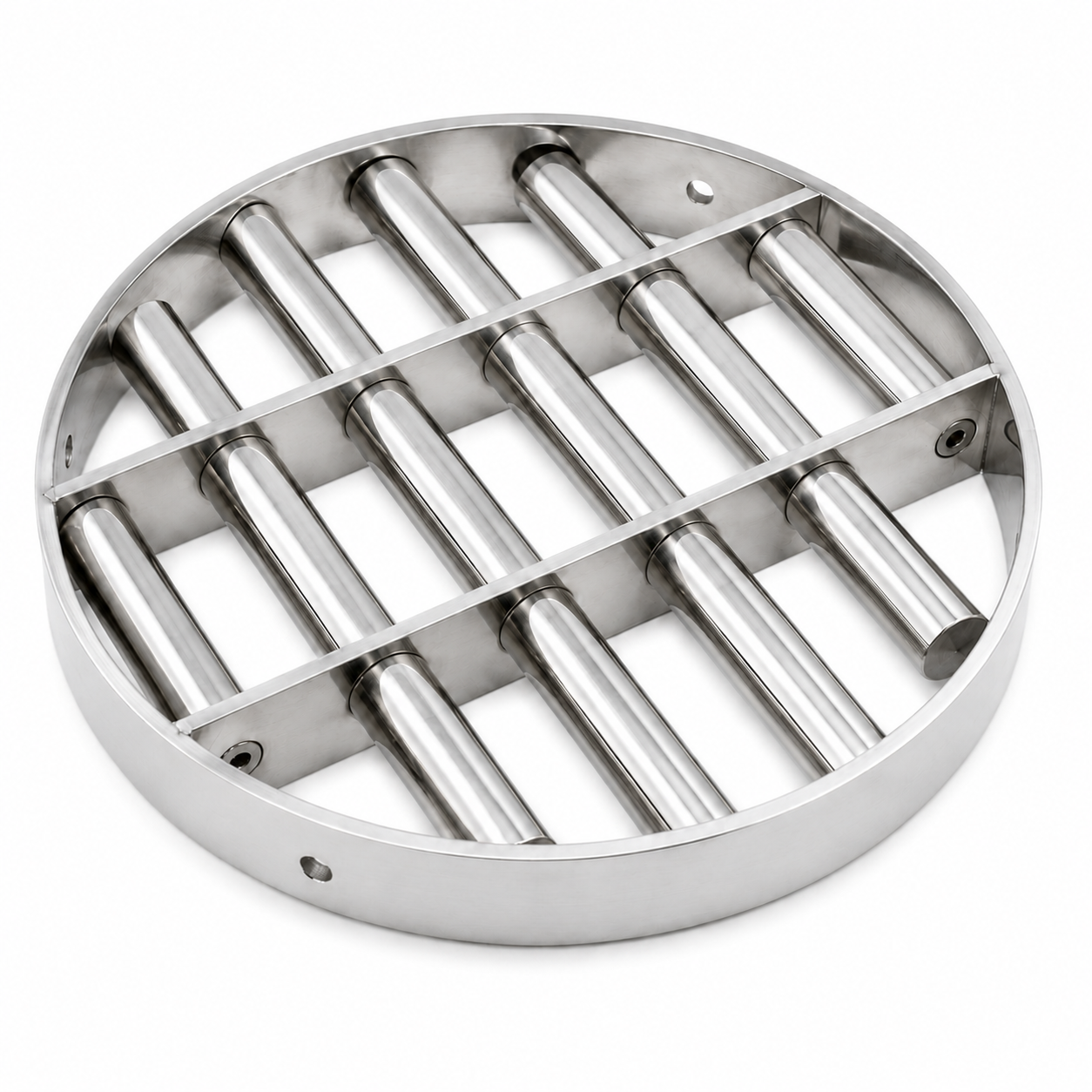

This round magnetic grate is manufactured with stainless steel magnetic bars and a fully welded frame structure for reliable industrial use. The magnetic bars are arranged across the circular frame to provide effective magnetic coverage as materials pass through the grate. Depending on the model, the magnetic strength is available from 8,000 Gauss to 12,000 Gauss, making it suitable for a wide range of general industrial, food processing, plastics, recycling, chemical, and powder handling applications.
The round design allows easy installation into circular hoppers or round material flow systems. It can help protect downstream equipment, improve product purity, and reduce the risk of metal contamination in production.
Modern rare earth magnetic technology provides significantly stronger magnetic performance compared with traditional ceramic magnets, allowing fine ferrous particles and small iron contaminants to be captured more effectively during material flow.
For specific dimensions, magnetic strength, operating temperature, material grade, food-grade requirements, or custom-built magnetic grate designs, please contact our customer service team.
Key Features
- Round magnetic grate design for circular hoppers, bins, and chutes
- Suitable for removing ferrous particles from powders, granules, and dry materials
- Stainless steel magnetic bars for industrial use
- Available in multiple diameters and magnetic bar configurations
- Magnetic force options from 8,000 Gauss to 12,000 Gauss
- Helps protect processing equipment and improve product quality
- Easy to install, remove, clean, and maintain
- Custom sizes and configurations may be available upon request
Applications
Round grate magnets are commonly used in:
- Food processing
- Plastic manufacturing
- Recycling
- Chemical processing
- Pharmaceutical production
- Powder and granule handling
- Agricultural product processing
- General industrial material separation
- Hopper and chute protection systems
Product Specifications
| Model Number | A Diameter / Size (mm) | Magnetic Bars | Material | Magnetic Force |
|---|---|---|---|---|
| PTF0001-150 | 147 mm | 3 pcs | SS304 | 8,000 Gauss |
| PTF0001-200 | 184 mm | 4 pcs | SS304 | 8,000 Gauss |
| PTF0001-250 | 247 mm | 5 pcs | SS304 | 10,000 Gauss |
| PTF0001-300 | 289 mm | 6 pcs | SS304 | 10,000 Gauss |
| PTF0001-350 | 391 mm | 7 pcs | SS304 | 12,000 Gauss |
| PTF0001-400 | 494 mm | 8 pcs | SS304 | 12,000 Gauss |
Structure: Round grate magnet with stainless steel magnetic bars
Material: SS304 stainless steel
Magnetic Force: 8,000–12,000 Gauss depending on model
Available Models: RN150, RN200, RN250, RN300, RN350, RN400
Customisation: Custom size, magnetic strength, material, and bar arrangement may be available upon request
