Magnetic Liquid Trap Separator

Product Description

The Magnetic Liquid Trap Separator is designed for removing ferromagnetic contamination from liquids, semi-liquids, pastes, syrups, and slurry materials flowing through pipeline systems. It uses high-strength magnetic rods installed inside the pipeline housing to attract and capture fine iron particles, rust, ferromagnetic dirt, and other magnetic contaminants during continuous production.

This product is commonly used in food processing, beverage production, chemical processing, and other applications where liquid or viscous materials must remain clean and free from metal contamination. As the liquid passes through the separator body, ferrous particles are captured by the magnetic rods, helping improve product purity and protect downstream equipment.

The standard operating temperature is up to 80°C / 176°F. If higher temperature resistance is required, the magnetic system can be optimised to work up to approximately 350°C / 662°F, depending on the final design and magnet material selection.

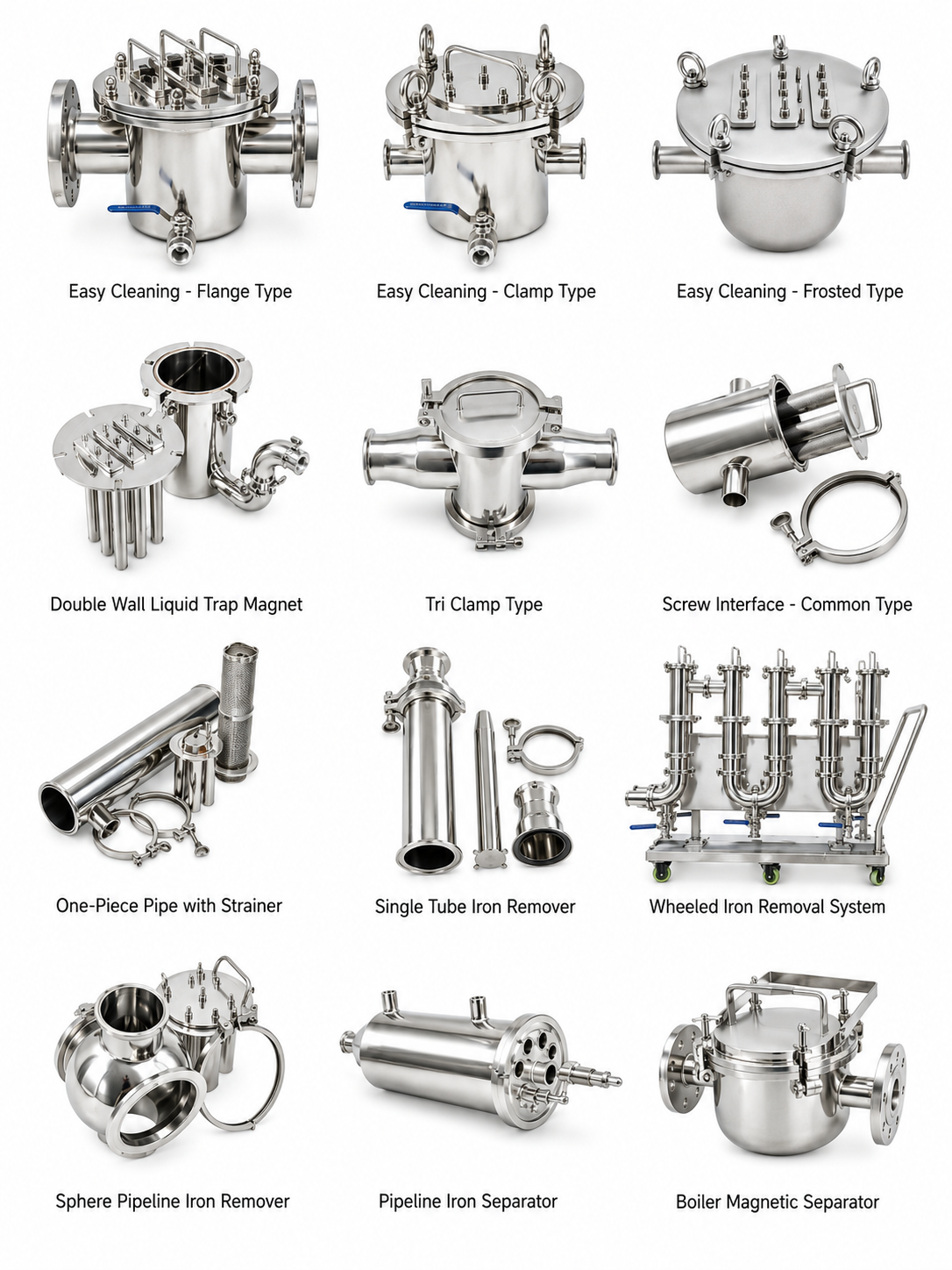

The typical magnetic force of the rods is approximately 10,000–15,000 Gauss, allowing the separator to capture fine ferrous particles, including very small iron contaminants. Two connection styles are available: Flange Type and Clamp Type, suitable for different pipeline installation requirements.

For specific pipe size, connection type, magnetic strength, operating temperature, pressure requirement, stainless steel grade, or customised liquid separator design, please contact our customer service team before ordering.

Key Features

• Designed for liquid, semi-liquid, syrup, paste, and slurry applications
• Removes ferromagnetic dirt, rust, fine iron particles, and metal contaminants
• Magnetic rod strength typically 10,000–15,000 Gauss
• Standard working temperature up to 80°C / 176°F
• High-temperature design available up to approximately 350°C / 662°F
• Available in Flange Type and Clamp Type configurations
• Suitable for continuous pipeline installation
• Helps improve product purity and protect processing equipment
• Custom sizes and connection types may be available upon request

Typical Applications

Magnetic liquid trap separators are commonly used in:

• Fruit juice processing
• Syrup production
• Chocolate processing
• Paste and sauce production
• Food and beverage processing
• Chemical liquid processing
• Liquid slurry handling
• Fine iron removal from pipeline systems
• Product purification and contamination control

Typical materials include:

• Fruit juice
• Syrups
• Chocolate
• Pastes
• Sauces
• Liquid food products
• Semi-liquid materials
• Slurry or viscous materials

Product Specifications – Flange Type
